- Aluminium (LM6) Die-cast body and components.
- Housing treated against Porosity through a special process.
- Complete meshing of teeth to avoid play in the gears.
- No overshooting of the pointer on the dial at the two extremes.
- The cam assembly can be pre-adjusted as per customer’s requirement to set off the alarm at any point before the empty position.
- Precision positioning of magnets to ensure complete union in their movement.
- The presence of only one box at the bottom of the dial offers simplicity in design and avoids excess internal wiring in the indicator.

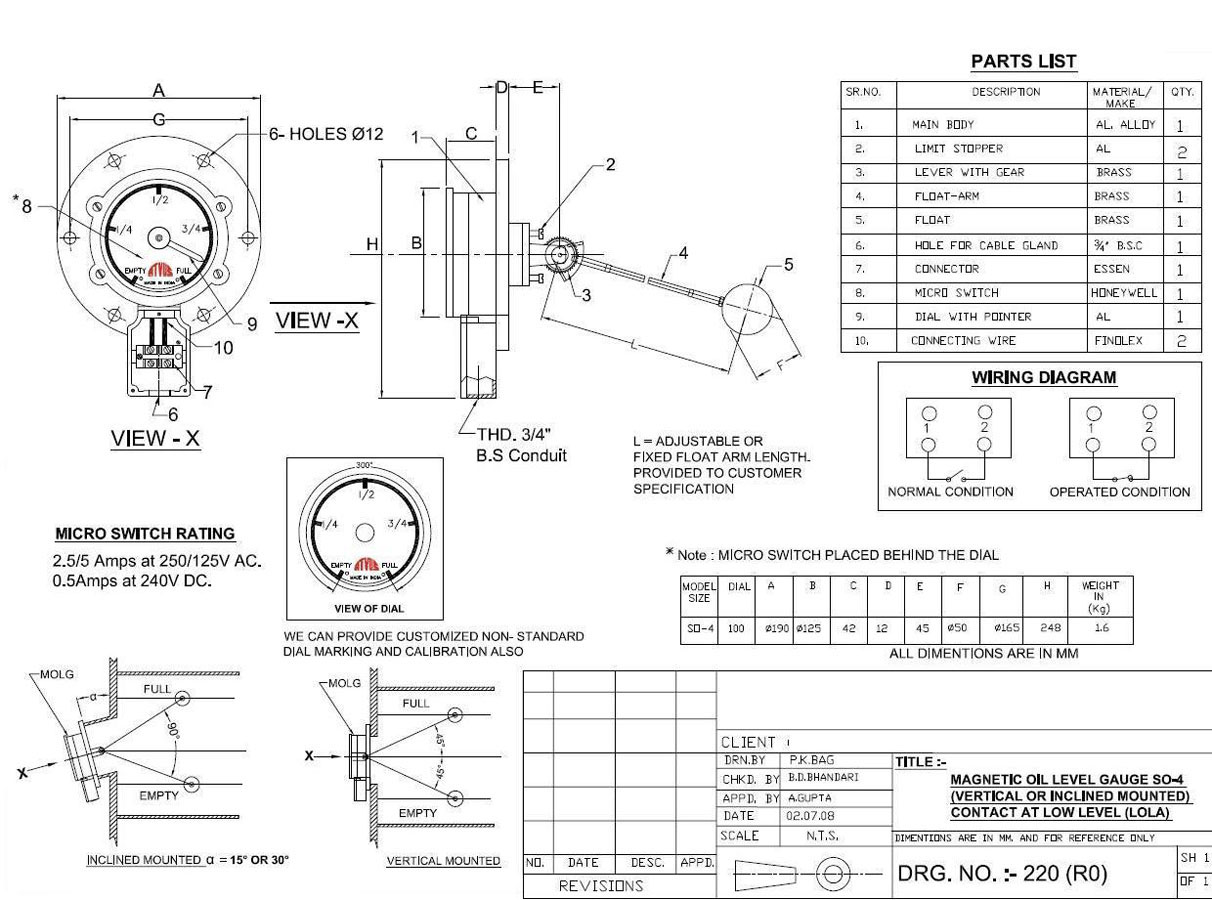

SO-4
Dimensional Drawing

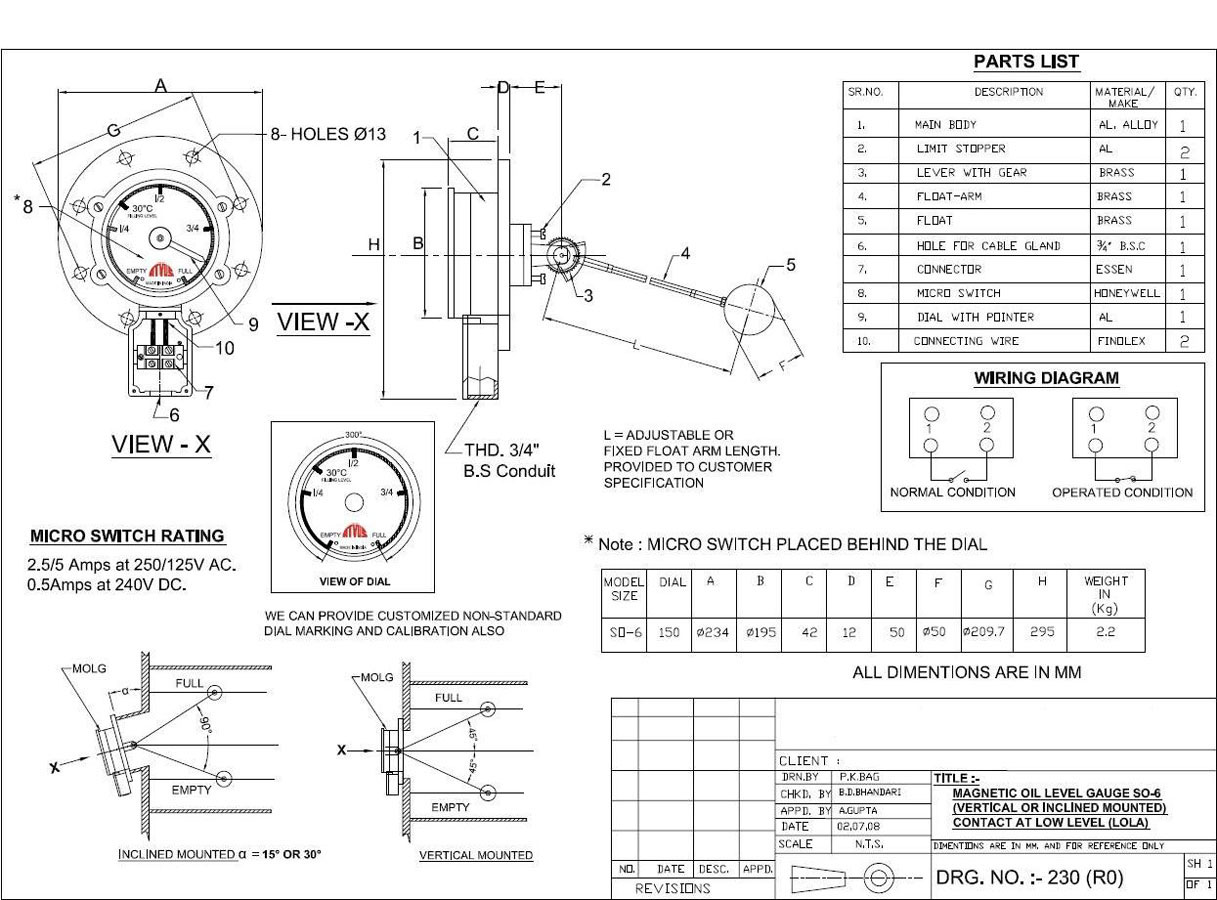

SO-6
